RIDGID 18V SubCompact Brushless Cordless 3/8 in. Right Angle Drill (Tool Only)
41 ratings
Highlights
- Lightweight Design. Heavyweight Performance.
- Pair with MAX Output batteries for maximum power
- Delivers 375 in./lbs. of torque
- Industry's most compact right angle drill measuring in at only 3-1/2 inches
- 2-Speed gear box delivers 0-500 / 0-1,900 RPM
- 3/8 in. chuck provides optimized bit insertion depth
- LED Light for improved low light situations
- 100% Compatible: Works with all RIDGID 18V Batteries
- Includes: R87701 18V SubCompact Brushless Cordless 3/8 in. Right Angle Drill, Drilling/Driving Bit, Bit Holder with Screw, Belt Hook with Screw, and Operator's Manual
- Battery and charger sold separately
Description
RIDGID introduces the R87701 18V SubCompact Brushless 3/8 in. Right Angle Drill. The RIDGID SubCompact Brushless lineup pairs powerful brushless motor technology in a compact tool design. This Brushless Right Angle Drill is the industry's most compact Right Angle Drill at only 3-1/2 inches in length, perfect for drilling and driving in compact spaces such as inside a cabinet or in-between studs. It delivers best in class power at 375 in./lbs. of torque to power through tough applications such as drilling large spade bits through 2x4s. It features a 2-speed gearbox that allows users to match the torque and speed to the application. The 3/8 in. chuck provides an optimized bit insertion depth, to change bits quickly and easily for improved productivity. Built with superior ergonomics in mind, this Brushless Right Angle Drill features a two-finger paddle trigger, optimized for drilling, driving, and tight space applications. As always, this RIDGID 18V SubCompact Brushless Right Angle Drill is 100% compatible with all RIDGID 18V batteries.

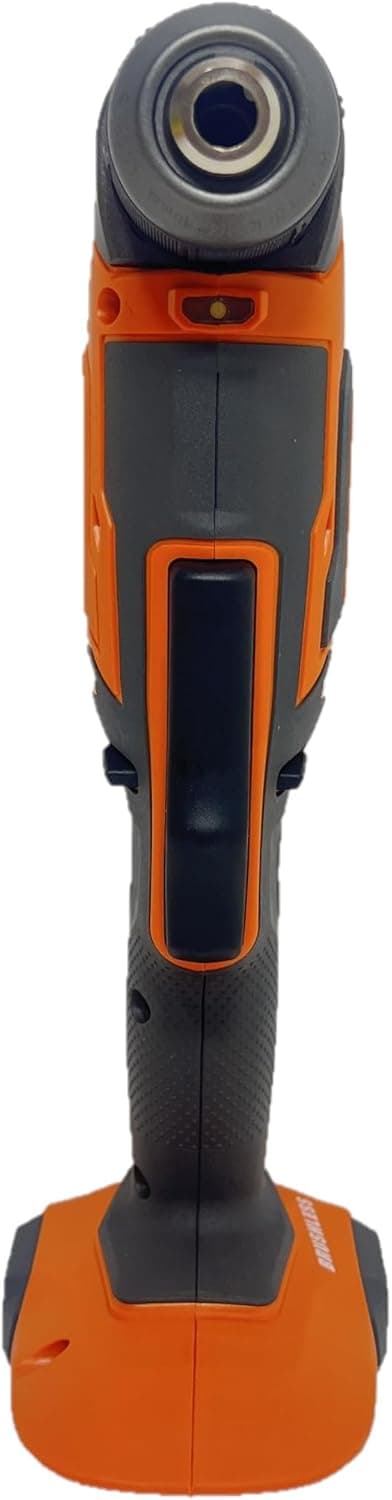

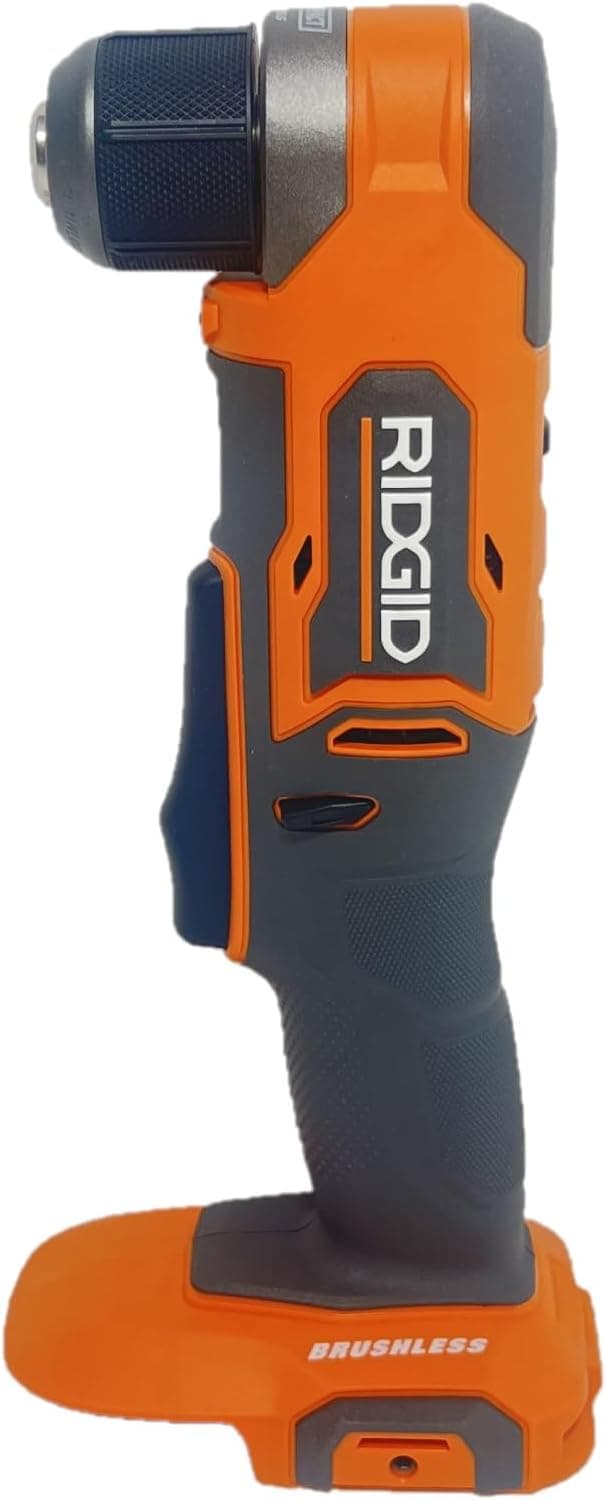

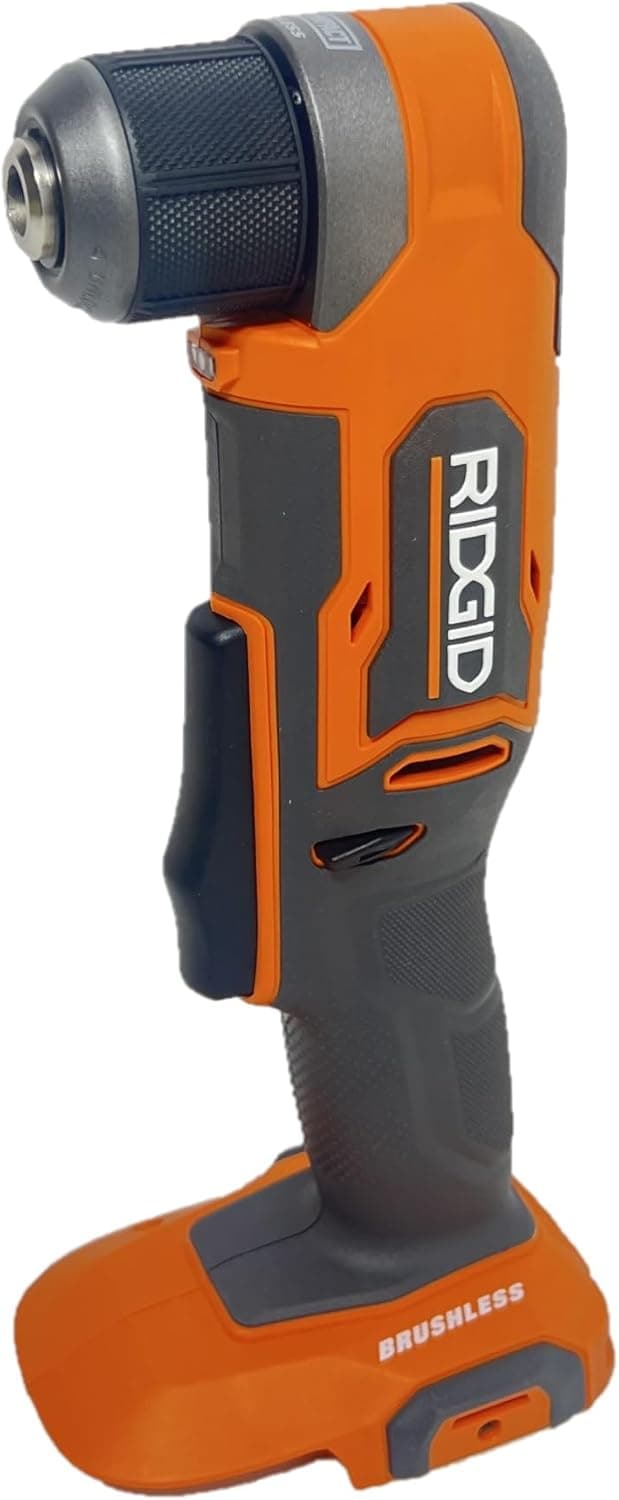

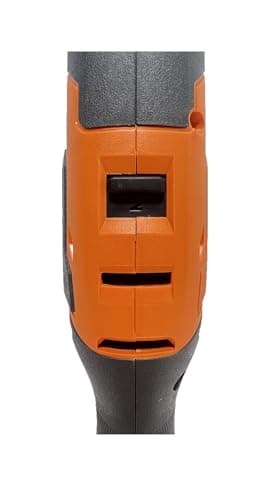

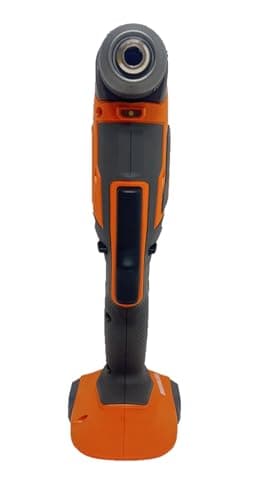

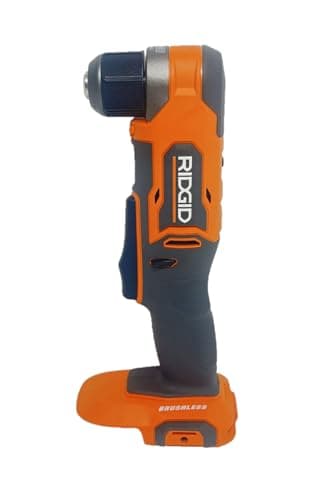

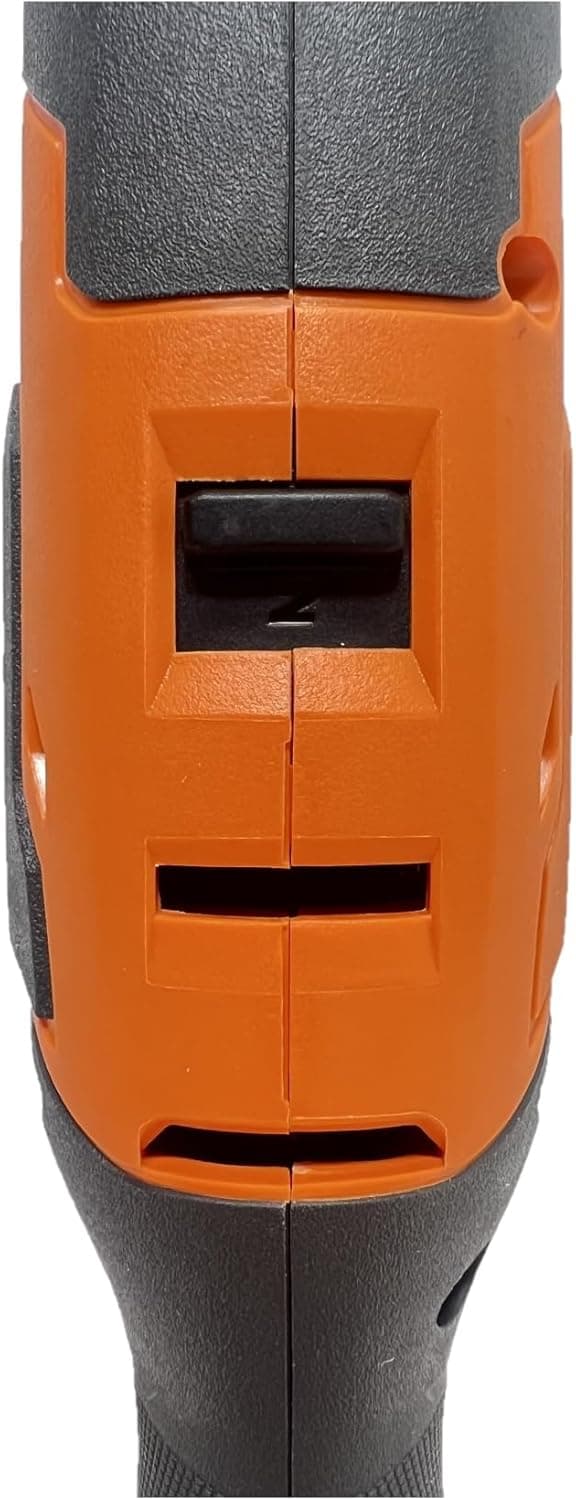

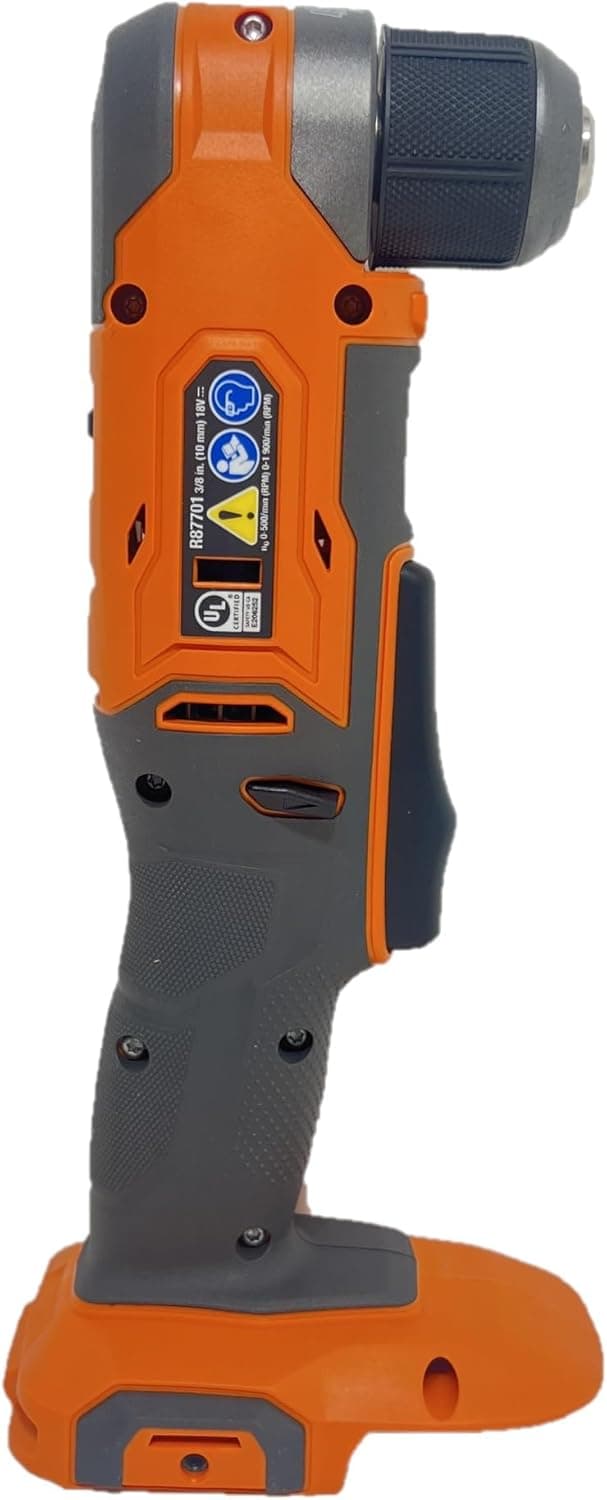

Photos
Product specs
| Specification | Details |
|---|---|
| Brand | RIDGID |
| Power Source | Battery Powered |
| Maximum Rotational Speed | 1.9E+3 RPM |
| Voltage | 18 Volts |
| Color | Orange |
| Included Components | R87701 18V SubCompact Brushless Cordless 3/8 in. Right Angle Drill, Drilling/Driving Bit, Bit Holder with Screw, Belt Hook with Screw, and Operator's Manual |
| Special Feature | Variable Speed |
| Product Dimensions | 5"L x 3.5"W x 11.5"H |
| Material | ABS Plastic |
| Maximum Torque | 375 Inch Pounds |
| Number of Speeds | 2 |
| Speed | 1900 RPM |
| Item Weight | 2.5 pounds |
| Maximum Power | 75 Watts |
| Item Torque | 375 Inch Pounds |
| Drill Type | Basic Drill |
| Is Electric | No |
| UPC | 648846080185 |
| Drilling Capacity Wood | 2 Inches |
| Manufacturer | RIDGID |
| Part Number | R87701 |
| Item model number | R87701B |
| Item Package Quantity | 1 |
| Special Features | Variable Speed |
| Usage | Multiple |
| Batteries Included? | No |
| Batteries Required? | No |
| Battery Cell Type | Lithium Ion |
| Warranty Description | Not eligible for LSA |
| ASIN | B0BFFKXY2K |
| Date First Available | September 15, 2022 |
