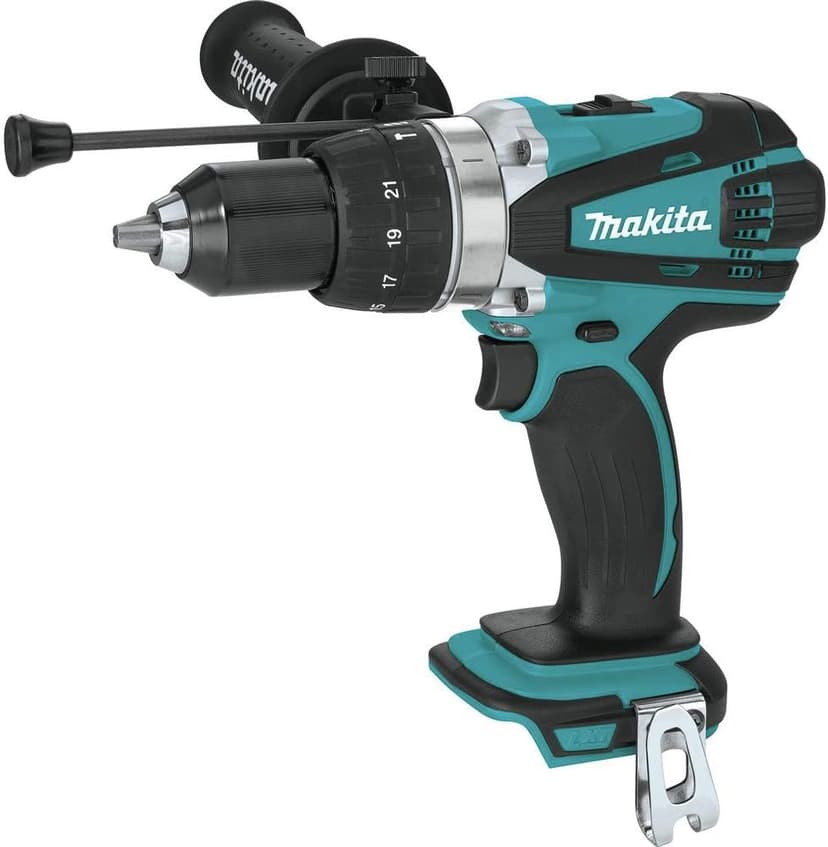

Makita XPH03Z 18V LXT Lithium-Ion Cordless 1/2" Hammer Driver-Drill, Tool Only
244 ratings
Highlights
- Makita-Built 4-Pole Motor Delivers 750 in.lbs. of Max Torque
- Mechanical 2-speed transmission (0-400 & 0-2,000 RPM) covers a wide range of drilling, fastening and hammer drilling applications

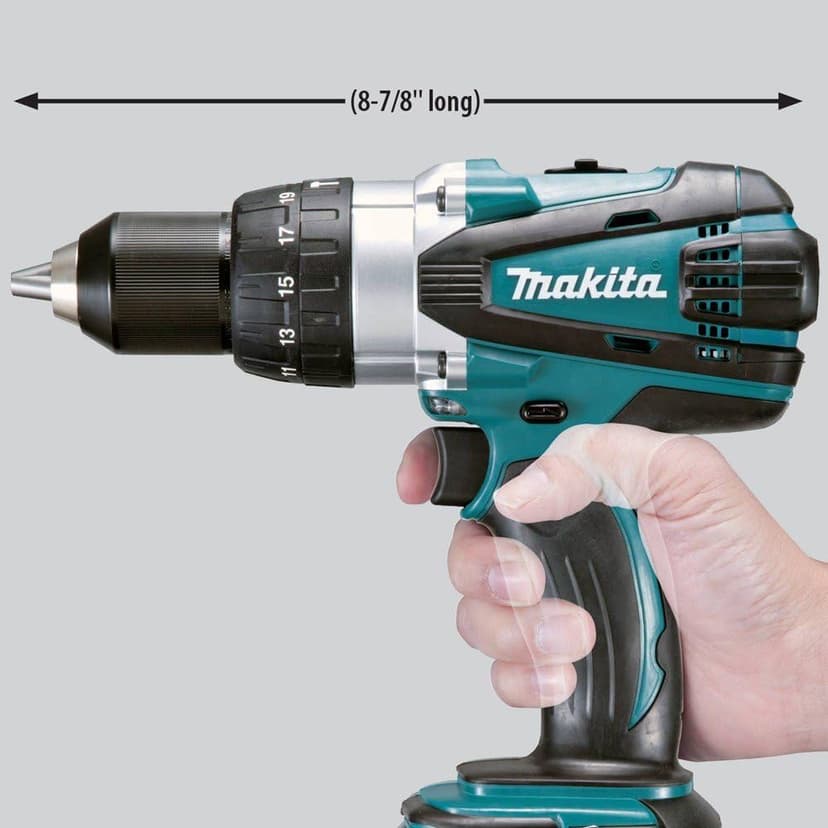

- Compact and ergonomic design at only 8-7/8" long
- Weighs only 5.1 lbs. with battery (battery not included) for reduced operator fatigue
- Extreme Protection Technology (XPT) engineered for improved dust and water resistance for operation in harsh job site conditions
Description
The 18V LXT Lithium-Ion 1/2" Hammer Driver-Drill (model XPH03Z, tool only) delivers a full 750 in.lbs. of Max Torque and 18% more speed, yet it is more compact and weighs less than the previous model. The XPH03Z has the torque and speed that contractors demand, and it is engineered for increased resistance to water and dust. For drilling and driving, Makita has delivered a total solution. (battery and charger sold separately). The XPH03Z is engineered with a Makita-built 4-pole motor that delivers an industry-leading 750 in.lbs. of Max Torque, with 30,000 BPM and 2,000 RPM. The new all-metal planetary gear system is more efficient so the XPH03Z is also more compact at only 8-7/8" long and 5.1 lbs. with battery. The XPH03Z is engineered with a Makita-built 4-pole motor that delivers an industry-leading 750 in.lbs. of Max Torque, with 30,000 BPM and 2,000 RPM. The new all-metal planetary gear system is more efficient so the XPH03Z is also more compact at only 8-7/8” long and 5.1 lbs. with battery. The XPH03Z features Makita Extreme Protection Technology (XPT). XPT is a protective seal inside the tool engineered for improved water resistance by channelling water and dust from the tool's key internal components. The XPT-equipped XPH03Z is engineered for improved operation in harsh jobsite conditions.
Photos
Product specs
| Specification | Details |
|---|---|
| Brand | Makita |
| Power Source | Battery Powered |
| Maximum Rotational Speed | 2000 RPM |
| Voltage | 18 Volts |
| Maximum Chuck Size | 0.5 Inches |
| Color | Black Blue |
| Included Components | Belt Clip (346317-0), Depth Gauge (122576-8), Side Handle (126131-8), Tool Only (battery and charger not included) |
| Special Feature | Variable Speed |
| Product Dimensions | 10"L x 4.69"W x 9.49"H |
| Material | reinforced composite |
| Maximum Torque | 750 Inch Pounds |
| Number of Speeds | 2 |
| Speed | 2000 RPM |
| Item Weight | 4 pounds |
| Maximum Power | 350 Watts |
| Item Torque | 7.5E+2 Inch Pounds |
| Drill Type | Hammer Drill |
| Is Electric | Yes |
| UPC | 088381653534 784497198500 |
| Global Trade Identification Number | 00088381653534 |
| Manufacturer | Makita |
| Part Number | XPH03Z |
| Item model number | XPH03Z |
| Batteries | 1 Lithium Ion batteries required. |
| Is Discontinued By Manufacturer | No |
| Thickness | 1 Inches |
| Item Package Quantity | 1 |
| Special Features | Variable Speed |
| Batteries Included? | No |
| Batteries Required? | Yes |
| Battery Cell Type | Lithium Ion |
| Warranty Description | 3-year limited warranty |
| ASIN | B00R3HB0PC |
| Date First Available | January 14, 2015 |
