Understanding American Pattern Files

American pattern files are hand tools designed for precision shaping of metal, wood, or plastic. They differ from machinist or Swiss pattern files by their size, cut style, and intended use. While Swiss pattern files are often reserved for fine detail work, American pattern files cover a broader range of shaping and smoothing tasks.

They typically range in size from 4 to 16 inches and are manufactured in multiple cuts. This makes them versatile in both rough stock removal and fine finishing. Because of their durability, they remain a staple in metalworking shops, woodworking projects, and maintenance kits.

Types of Cuts in American Pattern Files

One of the most important factors in selecting a file is the cut style. Each cut refers to the arrangement and depth of the teeth along the file surface.

Single-Cut Files

Single-cut files have one set of parallel teeth running across the face. They produce a smooth finish and are excellent for sharpening tools or refining edges. They cut slower but leave behind a cleaner surface, making them ideal for final touches.

Double-Cut Files

Double-cut files feature two sets of teeth that crisscross each other. This design removes material faster but leaves a rougher finish. They are commonly used in heavy stock removal where efficiency matters more than surface smoothness.

Rasp-Cut Files

Rasp-cut files are coarse, with individually raised teeth designed for rapid material removal. They are especially useful on softer materials like wood, lead, or soft aluminum. Though less common in precision metalworking, they remain valuable in woodworking applications.

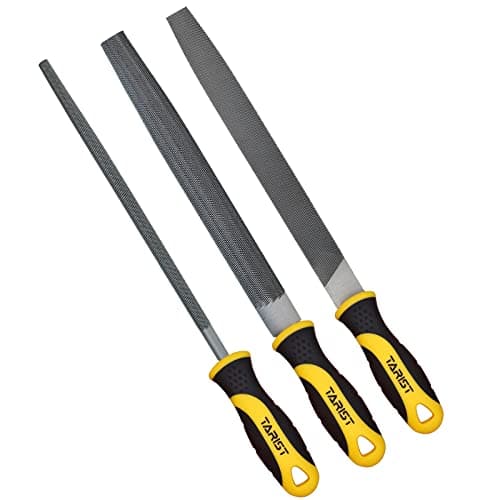

Common Shapes of American Pattern Files

Beyond cut type, the shape of a file determines how it interacts with the workpiece. Each shape has a specific purpose.

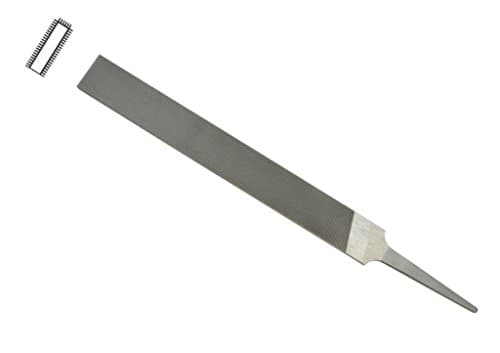

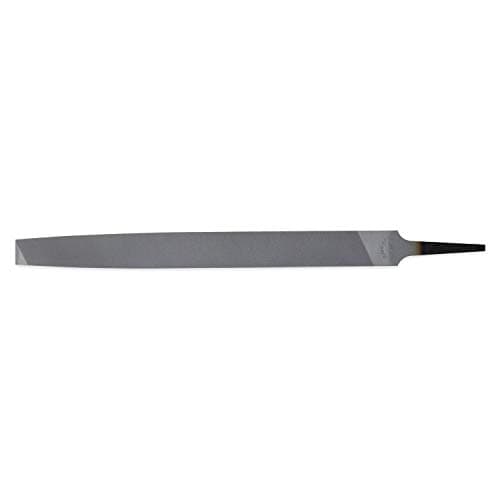

Flat Files

Flat files are rectangular and among the most versatile. They can be used on both flat and slightly convex surfaces, making them a go-to option for general work.

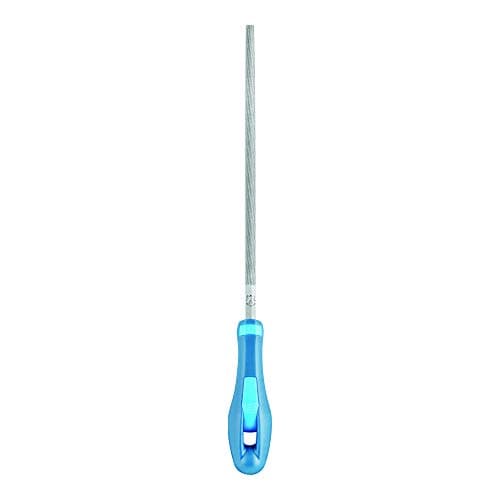

Round Files

Also known as rat-tail files, round files are tapered and cylindrical. They are perfect for enlarging holes, shaping concave surfaces, and smoothing curved profiles.

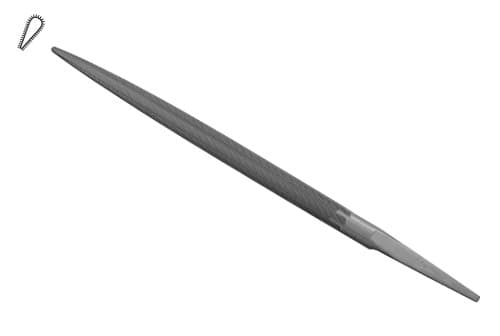

Half-Round Files

Half-round files combine a flat side and a rounded side. This dual surface makes them adaptable, allowing work on both flat and curved areas.

Square Files

Square files have four sharp edges, designed to enlarge rectangular holes, sharpen internal corners, and file keyways.

Triangular Files

Triangular or three-square files are used for filing acute internal angles, saw teeth, and notches. Their sharp edges make them especially useful for precision fitting.

File Grades: Bastard, Second-Cut, and Smooth

The grade of a file refers to its coarseness. Choosing the correct grade ensures the right balance of material removal and surface finish.

  • Bastard Cut – Coarse teeth, best for rapid stock removal.

  • Second-Cut – Medium grade, versatile for both shaping and smoothing.

  • Smooth Cut – Fine teeth, ideal for finishing touches and precision work.

For example, a machinist may begin with a bastard cut file to remove excess metal, follow with a second-cut file for refinement, and finish with a smooth file to polish the workpiece.

Applications of American Pattern Files

American pattern files have a broad range of uses, extending across industries and crafts.

Metalworking

Files are indispensable for deburring sharp edges, refining welds, and shaping custom parts. Precision in filing ensures components fit properly, which is essential in mechanical repairs and fabrication.

Woodworking

Carpenters and furniture makers use files to smooth joints, refine curves, and adjust fitting pieces. Half-round and rasp files are especially useful for shaping softer woods.

Automotive Repair

In auto shops, files are employed to adjust engine components, clean up threads, and shape custom brackets. Their ability to work in tight spots makes them invaluable.

Tool Sharpening

Flat and single-cut files are commonly used to sharpen blades, lawnmower parts, and hand tools. They restore edges without the need for power equipment.

How to Choose the Right File

Selecting the right American pattern file involves considering the material, the amount of stock to remove, and the desired finish.

  • Material hardness – Use coarse files for soft materials and finer cuts for harder metals.

  • Work size – Larger files remove more material but require more space; smaller files provide better control.

  • Surface finish – Choose single-cut for smooth finishes, double-cut for aggressive removal.

A good practice is to keep a set of different shapes and cuts on hand, ensuring readiness for any task.

Tips for Proper File Use

Even the best file requires proper technique to deliver results. Here are some guidelines:

  • Apply pressure only on the forward stroke; lift on the return to avoid dulling teeth.

  • Use a file card to clean debris from the teeth regularly.

  • Secure the workpiece firmly to maintain accuracy.

  • Choose the largest file that fits comfortably for better efficiency.

  • Avoid using a file without a handle; it prevents slipping and improves control.

Maintaining American Pattern Files

Proper care extends the lifespan of a file. After use, brush out filings with a file card and store the tool in a dry place to prevent rust. Light oiling can also protect against corrosion. Files should never be used as pry bars or hammers, as this damages the teeth and compromises performance.

Comparing American Pattern Files to Swiss Pattern Files

While American pattern files excel in general shaping, Swiss pattern files focus on precision detail. Swiss files are smaller, finer, and often used in watchmaking, jewelry, and precision engineering. American files, on the other hand, are more robust and versatile, making them better suited for larger-scale metalworking and woodworking tasks.

Conclusion

American pattern files remain an essential tool for professionals and hobbyists alike. Their range of cuts, shapes, and grades makes them adaptable to countless applications. Whether you’re a machinist refining a part, a woodworker shaping a curve, or a mechanic adjusting a component, having the best American pattern files in your toolkit ensures precision, control, and durability.

By understanding their types, applications, and care methods, you can choose the right file for every project—and use it with confidence.
